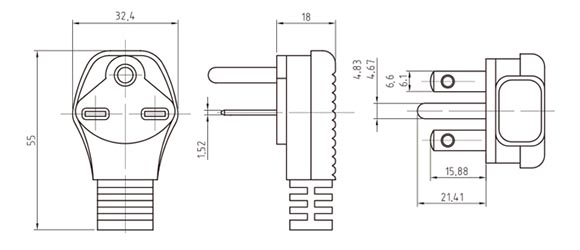

ST-261A Power Cord for North America
Connector Standards: NEMA6-15P
Plug Type: 6-15P
Approval: UL, CUL
Description
ST-261A Power Cord for North America is molded in a variety of colors, in any length, with opposite end terminated per customer specifications. A variety of wire types and sizes are available.
You could Email us: Plug Type, Cable Type, Length, Color, Cable End Process(Flat Cut/Strip/Tin/Or Need Connector), Quantity, Delivery Place/Port for order.
You could Email us: Plug Type, Cable Type, Length, Color, Cable End Process(Flat Cut/Strip/Tin/Or Need Connector), Quantity, Delivery Place/Port for order.
Suitable Cord
| SPT-2 | 18AWG | 3C | 10A | 250V |
| SPT-2 | 16AWG | 3C | 13A | 250V |
| SPT-3 | 18AWG | 3C | 10A | 250V |
| SPT-3 | 16AWG | 3C | 13A | 250V |
| SPT-3 | 14AWG | 3C | 15A | 250V |
| SPT-3 | 12AWG | 3C | 15A | 250V |
| SJ/SJT(W) | 18AWG | 3C | 10A | 250V |
| SJ/SJT(W) | 16AWG | 3C | 13A | 250V |
| SJ/SJT(W) | 14AWG | 3C | 15A | 250V |
| SJ/SJT(W) | 12AWG | 3C | 15A | 250V |
| SJTO(W)/ST/HPN | 18AWG | 3C | 10A | 250V |
| SJTO(W)/ST/HPN | 16AWG | 3C | 13A | 250V |
| SJTO(W)/ST/HPN | 14AWG | 3C | 15A | 250V |
| SJTO(W)/ST/HPN | 12AWG | 3C | 15A | 250V |
